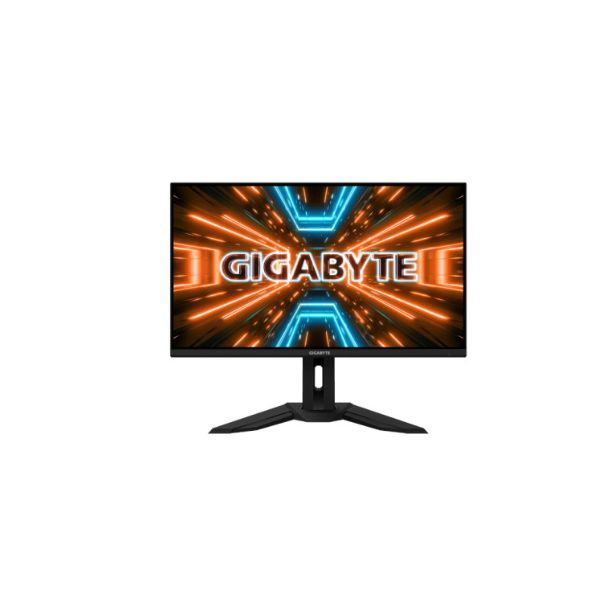

Gigabyte M32U Arm Edition – Price and Full Specifications

$700.00
SKU: M32U-AE
Brand: Gigabyte
Category: Monitor
Add to Compare

Available Official

Display 31.5 in, IPS, 3840 x 2160 pixels (4K UHD)
Refresh rate 48 Hz - 144 Hz
Dimensions 350 cd/m² (typical), 450 cd/m² (peak)
Weight 715.8 x 587.7 x 221 mm (with stand)
Brightness: 10.53 kg (with stand)

Our Rating

The overall rating is based on review by our experts

8.5

Design 9 / 10
Display 9 / 10
HDR 7 / 10
Refresh Rate 8 / 10
Connectivity 9 / 10
Ergonomics 9 / 10

PROS

31.5-inch 4K UHD IPS panel with 140 ppi for sharp visuals.
Wide color coverage with 123% sRGB and 90% DCI-P3.
Up to 144 Hz refresh rate with 2 ms response time and 1 ms MPRT.
HDMI 2.1 with 4K 120 Hz support for PS5 and Xbox Series X.
Ergonomic arm edition with generous height, tilt, pivot and swivel adjustments.
Built-in KVM switch, OSD Sidekick and rich connectivity including USB-C and USB hub.

CONS

Typical contrast ratio of 1000:1 as expected from IPS panels.
Average power consumption of 45.5 W under standard use.
No built-in camera.

Full Specifications

Basic Information

Brand	Gigabyte
Model	M32U Arm Edition
Model Year	2022

Dimensions & Weight

Dimensions With Stand	715.8 x 587.7 x 221 mm (with stand)
Dimensions Without Stand	715.8 x 423.8 x 68.2 mm (without stand)
Weight	10.53 kg (with stand); 7.21 kg (without stand); box: 990 x 536 x 192 mm, 221 kg

Display

Size	31.5 in
Diagonal	801 mm
Width	697.306 mm
Height	392.234 mm
Aspect Ratio	1.778:1
Panel Type	IPS
Resolution	3840 x 2160 pixels
Panel manufacturer	Innolux
Panel bit depth	10 bits (8 bits + FRC)
FRC	Yes
Coating	Anti-glare/Matte

Picture Quality

Backlight	W-LED
Static contrast	1000 : 1
HDR Support	DisplayHDR 400
Brightness	350 cd/m²
Peak Brightness	450 cd/m²
Pixel Density	140 ppi
Pixel Pitch	0.181 mm
Colors	1073741824 colors, 30 bits
sRGB	123 % (sRGB)
DCI-P3	90 % (DCI-P3)
Viewing angle	178 ° / 178 °

Response Time & Input Lag

MIN Response Time	2 ms
MAX Response Time	2 ms (minimum response time); 1 ms MPRT
Input lag	7 ms (average response time); 4 ms input lag

Refresh Rate & VRR

Native Refresh Rate	144 Hz
Maximum Refresh Rate	144 Hz
VRR Support	Adaptive-Sync
VRR Range	48 Hz - 144 Hz
VRR Flicker	HDMI 2.1 for PS5 and Xbox Series X - 4K @ 120 Hz (4:2:0)

Ergonomics & Design

VESA Mount	Yes,100 x 100 mm
Removable stand	Yes
Height adjustment	Yes,167 mm
Landscape/portrait pivot	Yes,0 °/90 °
Left/right swivel	Yes,270 °
Forward/backward tilt	Yes,5 °/25 °
Design Colors	Black
Cable Management	Ergonomic arm – forward extension 230 mm

Audio

Speakers

2 x 3 W (ClearSound)

Camera

Camera

Ports ,Connectivity & OS

USB	1 x USB 3.0 (Type-C; upstream) 1 x USB 3.0 (Type-B; upstream) 3 x USB 3.0 (Type-A; downstream; BC 1.2 charging at 5V/1.5A)
HDMI	2 x HDMI 2.1
Display Port	1 x DisplayPort 1.4 (DSC; HBR3)
Audio Port	1 x 3.5 mm Audio Out

Functional features

Gamming Features

6-axis color control
Adaptive-Sync technology
Display Stream Compression (DSC)
Flicker-free technology
GameAssist (Aim Stabilizer / Crosshair / Dashboard / Black Equalizer / Timer / Counter / Auto-Update)
KVM Switch
Low Blue Light
OSD Sidekick
Picture-by-Picture
Picture-in-Picture
Smart OD
