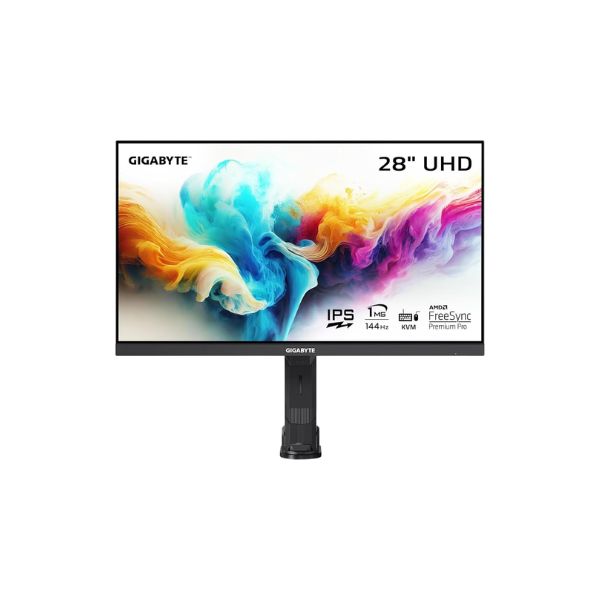

Gigabyte M28U Arm Edition – Price and Full Specifications

$600.00
SKU: M28U Arm Edition
Brand: Gigabyte
Category: Monitor
Add to Compare

Available Official

Display 28 in, IPS, 3840 x 2160 pixels
Refresh rate 48 Hz - 144 Hz
Dimensions 300 cd/m² (typical), 470 cd/m² (peak)
Weight 636.5 x 428.6 x 402.9 mm (with stand)
Brightness: 8.6 kg (with stand)

Our Rating

The overall rating is based on review by our experts

8.5

Design 8 / 10
Display 9 / 10
HDR 7 / 10
Refresh Rate 9 / 10
Connectivity 9 / 10
Ergonomics 9 / 10

PROS

28-inch 4K UHD IPS panel with very high 154 ppi pixel density.
Fast gaming performance with up to 144 Hz refresh rate and 1 ms MPRT.
Wide color gamut with 120% sRGB and 94% DCI-P3 coverage.
Ergonomic arm stand with large height, tilt, pivot and swivel adjustment.
Rich connectivity with dual HDMI 2.1, DisplayPort 1.3 (DSC), USB-C, USB-B and USB-A hub.
Eyesafe and TÜV certifications plus low blue light and flicker-free technologies.

CONS

Typical brightness of 300 nits may be modest for very bright environments.
No built-in camera.
HDR is limited to DisplayHDR 400 level.

Full Specifications

Basic Information

Brand	Gigabyte
Model	M28U Arm Edition
Model Year	2022

Dimensions & Weight

Dimensions With Stand	636.5 x 428.6 x 402.9 mm (with stand)
Dimensions Without Stand	636.5 x 372.3 x 63.1 mm (without stand)
Weight	8.6 kg (with stand); 5.18 kg (without stand); box: 930 x 510 x 165 mm, 11.7 kg

Display

Size	28 in
Diagonal	727.2 mm
Width	631.928 mm
Height	359.78 mm
Aspect Ratio	1.778:1
Panel Type	IPS
Resolution	3840 x 2160 pixels
Panel manufacturer	Innolux (M280DCA-E7B)
Panel bit depth	8 bits
FRC	No
Coating	Anti-glare/Matte

Picture Quality

Backlight	W-LED
Static contrast	1200 : 1
HDR Support	DisplayHDR 400
Brightness	300 cd/m²
Peak Brightness	470 cd/m²
Pixel Density	154 ppi
Pixel Pitch	0.16 mm
Colors	16777216 colors, 24 bits
sRGB	120 % (sRGB)
DCI-P3	94 % (DCI-P3)
Viewing angle	178 ° / 178 °

Response Time & Input Lag

MIN Response Time	2 ms
MAX Response Time	2 ms (minimum GtG); 1 ms (MPRT)

Refresh Rate & VRR

Native Refresh Rate	144 Hz
Maximum Refresh Rate	144 Hz
VRR Support	AMD FreeSync Premium Pro
VRR Range	48 Hz - 144 Hz

Ergonomics & Design

VESA Mount	Yes,100 x 100 mm
Removable stand	Yes
Height adjustment	Yes,208 mm
Landscape/portrait pivot	Yes,90 °
Left/right swivel	Yes,270 °
Forward/backward tilt	Yes,5 °/25 °
Design Colors	Black

Audio

Speakers

2 x 3 W (ClearSound)

Camera

Camera

Ports ,Connectivity & OS

USB	1 x USB 3.0 (Type-C; upstream) 1 x USB 3.0 (Type-B; upstream) 3 x USB 3.0 (Type-A; downstream; BC 1.2; 5V/1.5A)
HDMI	2 x HDMI 2.1
Display Port	1 x DisplayPort 1.3 (DSC)
Audio Port	1 x 3.5 mm Audio Out

Functional features

Gamming Features

6-axis color control
AMD FreeSync Premium Pro
Flicker-free technology
GameAssist (Aim Stabilizer / Crosshair / Alignment / Dashboard / Black Equalizer / Timer / Counter / Auto-Update)
KVM Switch
Low Blue Light
OSD Sidekick
Smart OD
SuperSpeed IPS
